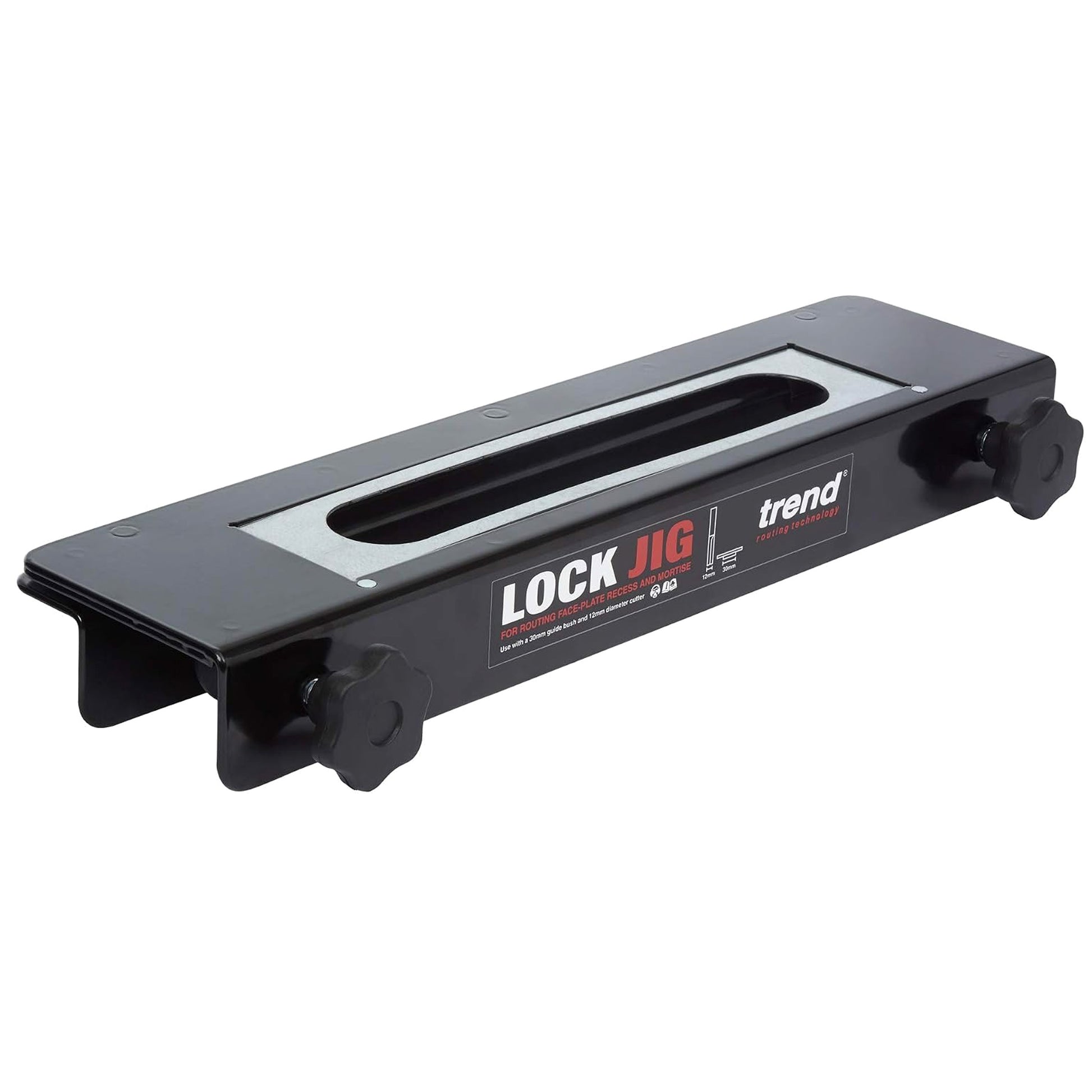

Trend Door Lock Jig Large LOCK/JIG/A
Trend Door Lock Jig Large LOCK/JIG/A
Regular price
£142.50
Regular price
Sale price
£142.50
Unit price
£142.50 each
Shipping calculated at checkout.
In stock
Quantity
Couldn't load pickup availability
- Door thickness min: 34mm
- Door thickness max: 58mm
- Includes templates for locks having the following face-plate dimensions:
- Metric (D x OL): 20mm x 235mm (RE)
- Metric (D x OL): 24mm x 235mm (RE)
- Rounded ends (RE)
- Mortise Lock Dimensions: Metric (D x OL) Template: 17 x 170mm*
- *Mortise is actually 180mm to give 5mm clearance each end
- Suitable for DDA (Disability Discrimination Act) lock size
- Adaptor plate included to allow smaller templates (239mm x 60mm) to be fitted (as supplied with standard LOCK/JIG)
- An auger bit and drill is required to complete deep mortises

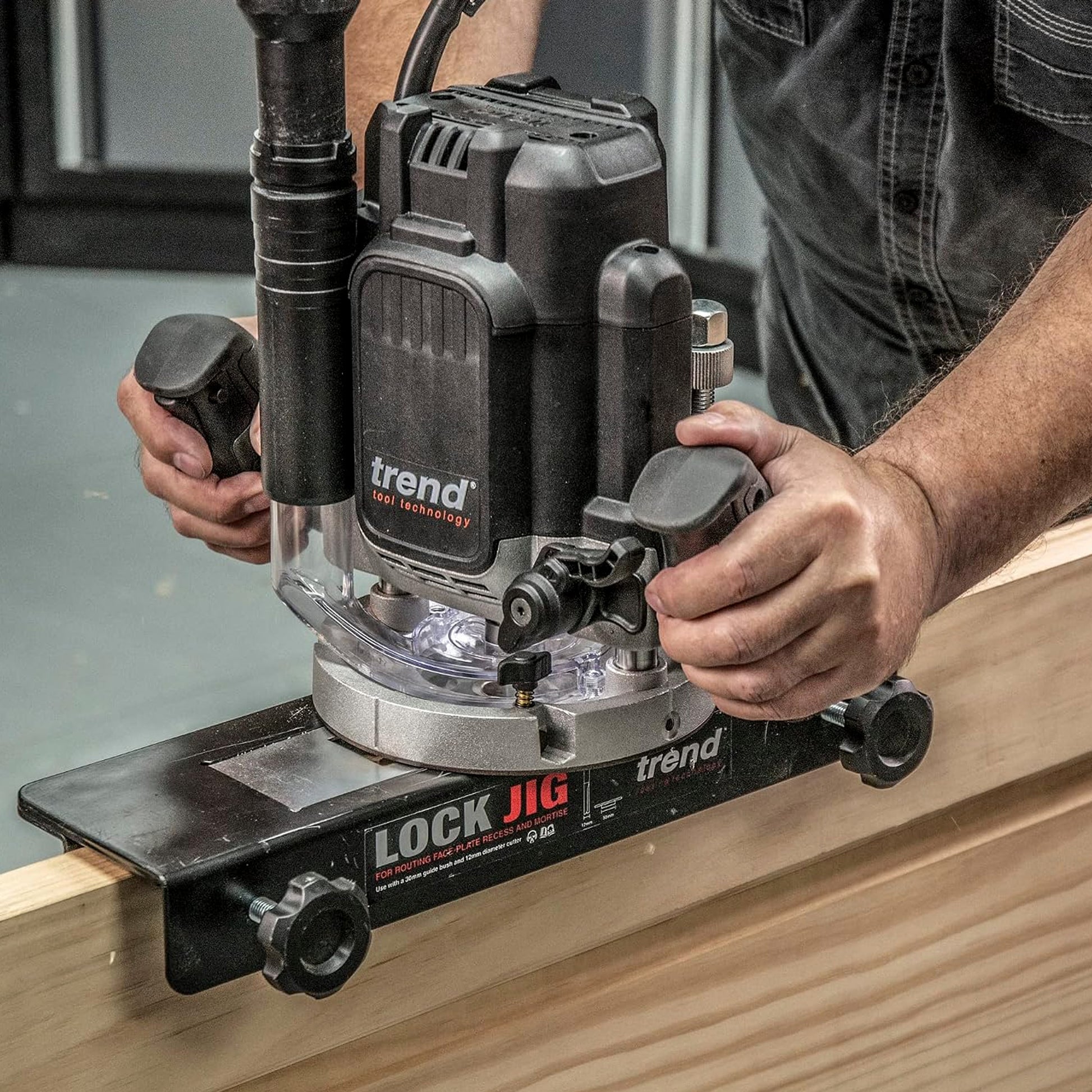

- The jig requires a 1/2in plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter
- A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise
- Suits DIN style locks
SKU:TRELOCKJIGA
