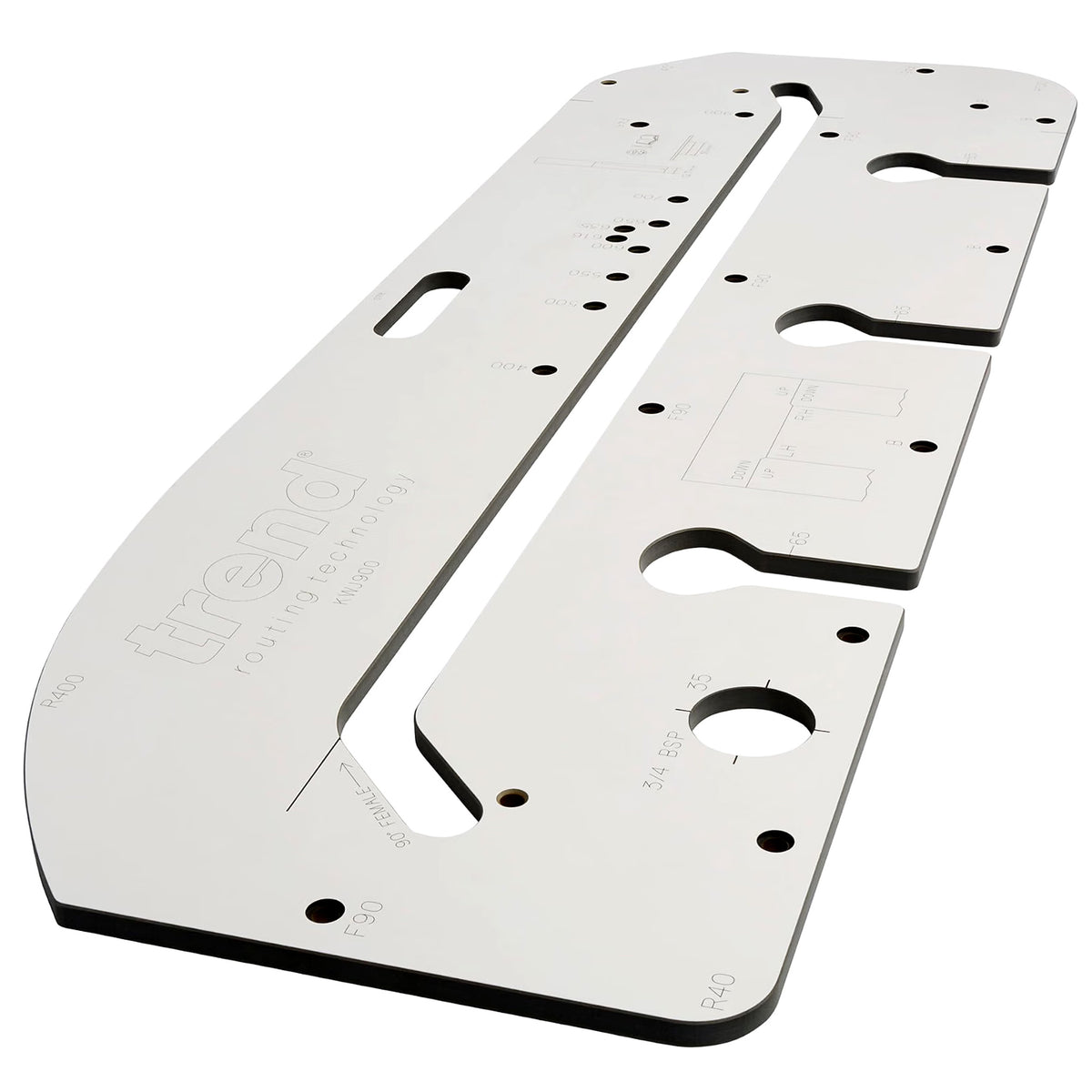

TREND Professional Kitchen Worktop Router Jig 900mm KWJ900
TREND Professional Kitchen Worktop Router Jig 900mm KWJ900
Regular price
£159.05
Regular price
Sale price
£159.05
Unit price
£159.05 each
Shipping calculated at checkout.
In stock
Quantity
Couldn't load pickup availability
- Length: 1185mm
- Width: 390mm
- Thickness: 12mm
- Weight: 7.7kg
- End Cut: 45 degrees
- Corner Radius: 40mm
- Corner Radius: 100mm
- Corner Radius: 400mm
- Corner Mitre Joint: 45 degrees
- Female cut material width loss (inset): 35mm
- Bolt recesses: 3
- Bolt recess centres: 300 + 300mm
- Bolt recess width: 14mm
- Hard wearing CNC machined compact grade high pressure laminate 12mm thick jig that cuts both parts of the joint
- Cable of the following cuts:
- Left hand and right hand corners
- 400mm radius peninsular joint
- 45 degree end cut with slight radius
- 45 degree trade corner solution for hob units
- 100mm radius corner
- 40mm radius corner
- 35mm kitchen door hole
- 3/4inch BSP hole for mixer taps
- Fixed lengths for 400mm, 500mm, 550mm, 600mm, 616mm, 635mm, 650mm, 700mm and 900mm wide worktops
- Cuts up to 40mm thick worktops with or without anti-drip postformed edge
- Three open-ended bolt recesses (dog bone style) for 150mm bolts
- Engraved lines for short 65mm bolts and worktop cross-cut
- 10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up
- Engraved markings for identification of pin holes
- Pins made from ABS plastic for strength
- Jig requires:
- Plunge router with 12.7mm (1/2in) shank capacity and minimum 1300 watts
- A template guide bush with 30mm outside diameter ref. GB30
- A TCT router cutter with 12.7mm (1/2in) diameter and 50mm (2in) cut length
- Two 100mm (4in) clamps
SKU:TREKWJ900
