Trend Routing Template Butt Hinge Recess 75mm and 100mm TEMP/BH/A
Trend Routing Template Butt Hinge Recess 75mm and 100mm TEMP/BH/A
Regular price
£46.10
Regular price
Sale price
£46.10
Unit price
£46.10 each
Shipping calculated at checkout.
In stock
Quantity
Couldn't load pickup availability
- Size: 214mm x 135mm x 8mm
- Door thickness min: 34mm
- Door thickness max: 44mm
- Hinge recess length: 75mm
- Hinge recess length: 100mm

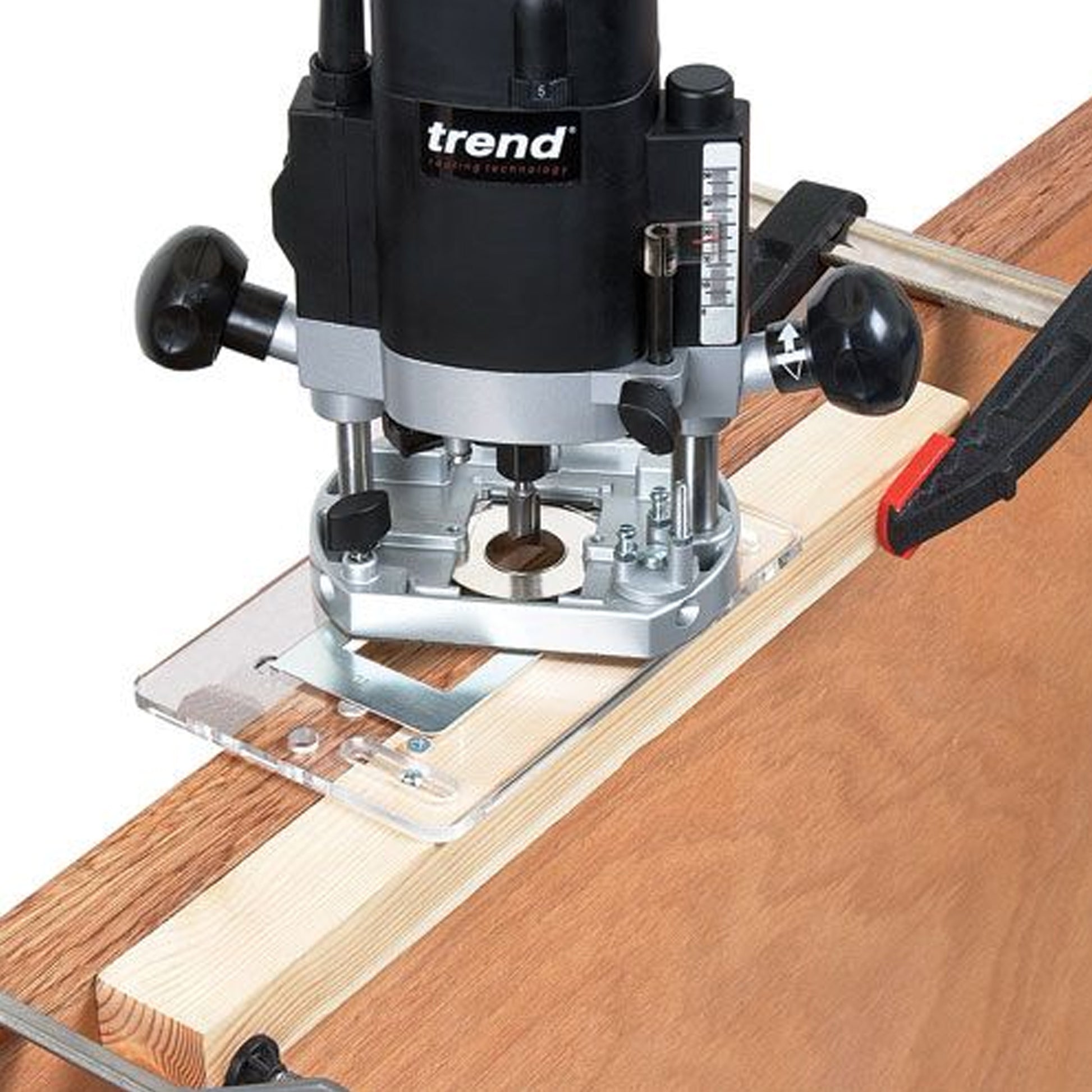

- A routing template that allows a router to create a hinge recess on a door

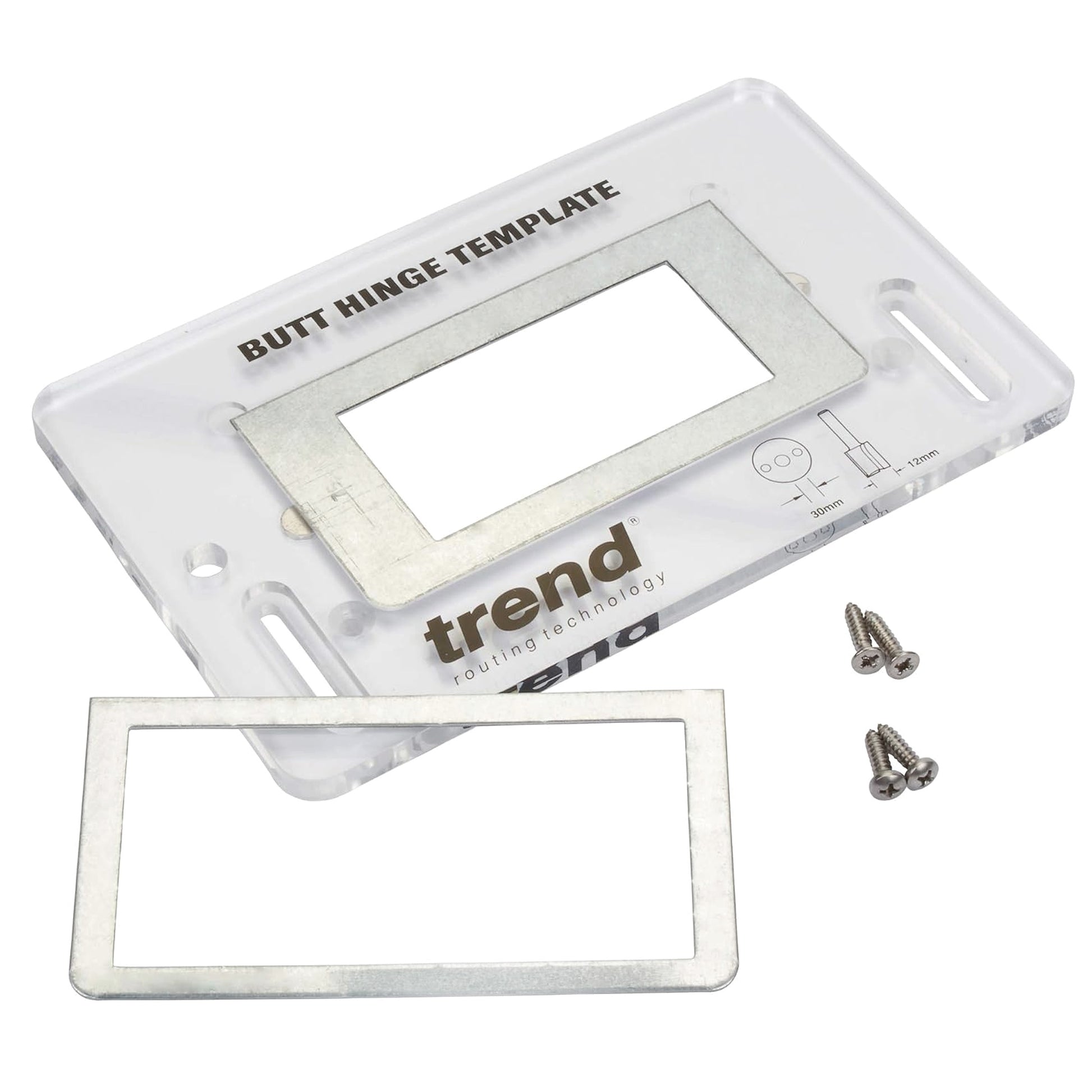

- Made from clear 8mm thick plastic
- Includes metal templates for 75mm and 100mm butt hinges
- Magnets in template frame to hold templates
- Cuts rounded corners which can be removed with a corner chisel or chisel
- Use on doors from 35mm to 44mm thick
- Requires 12mm diameter cutter and 30mm guide bush
- A user made batten 44mm x 34mm x 450mm is also required
SKU:TRETEMPBHA
