Trend Template Shelf Support 32mm Centre Jig TEMP/SS/A
Trend Template Shelf Support 32mm Centre Jig TEMP/SS/A
Regular price
£48.85
Regular price
Sale price
£48.85
Unit price
£48.85 each
Shipping calculated at checkout.
In stock
Quantity
Couldn't load pickup availability

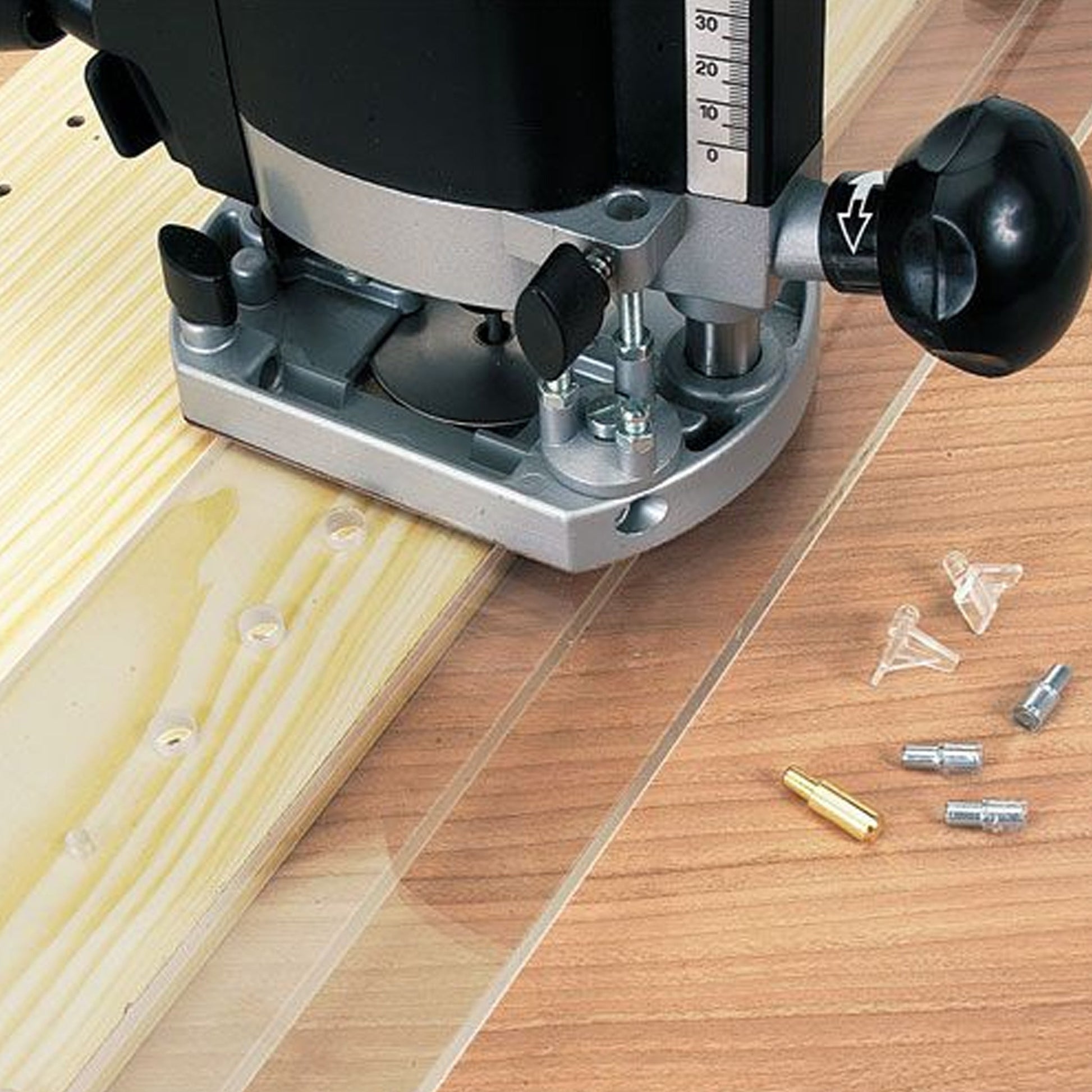

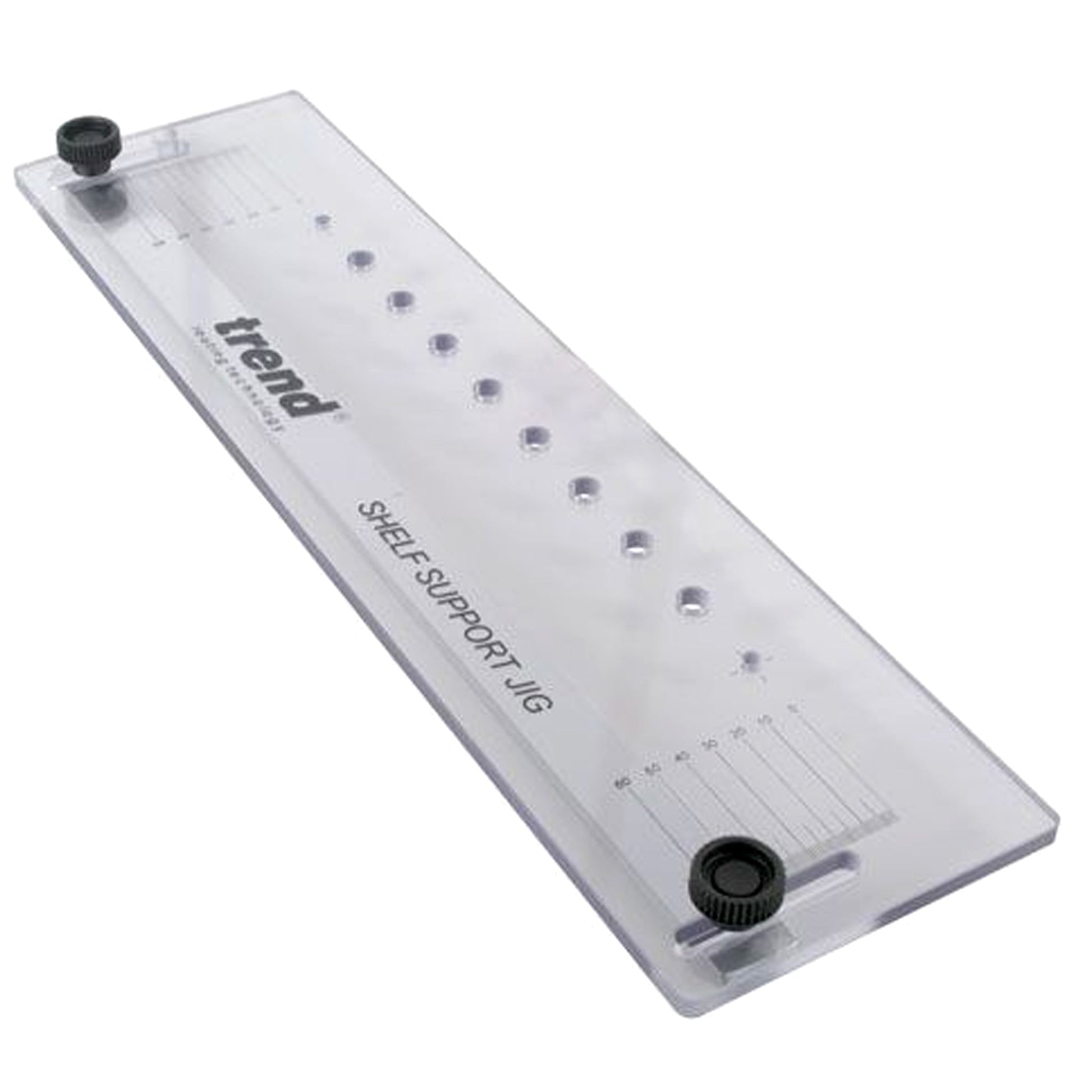

- Template to allow routing or drilling of 32mm centre holes for 5mm diameter shelf supports
- Clear plastic with an adjustable clamping bar with two locking knobs
- Supplied with twelve 5mm metal shelf supports, one alloy knurled index pin and a 9.5mm diameter guide bush
- Allows holes to be positioned from 10mm to 64mm from edge of board
- Can be used to add existing holes to a unit, or for user made shelves
- The index lines to allow for easy setting up
- Can also be used with a power drill and an accessory quick release 5mm shelf support drill bit guide Ref. SNAP/SS/5MM or TEMP/SSD/5MM
- This bit has a lip and spur drill fitted for drilling blind holes
- Requires two clamps and 5mm TCT router dowel drill Ref. 61/05 or C174
SKU:TRETEMPSSA
