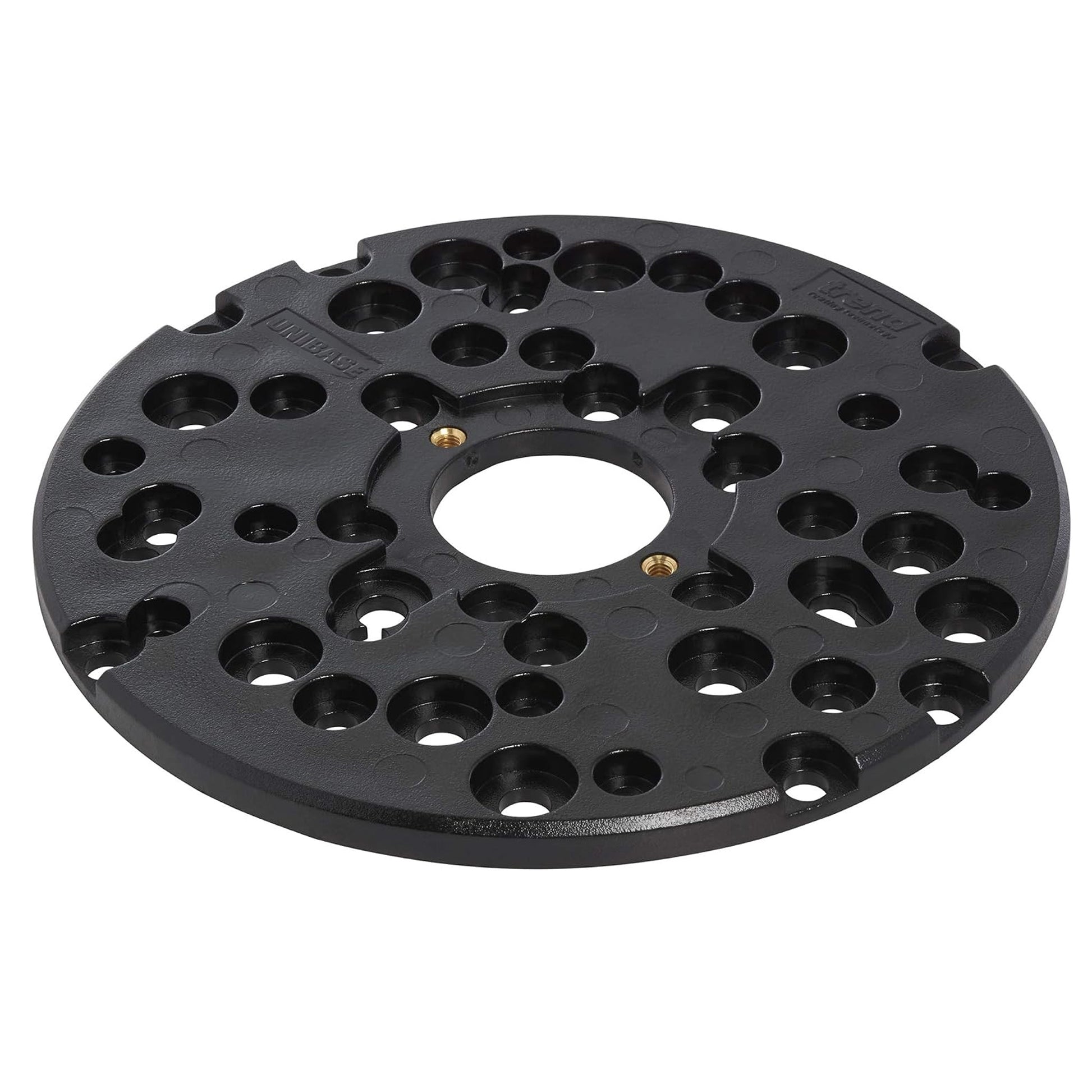

Trend Universal Router Sub Base with Pins and Bush UNIBASE
Trend Universal Router Sub Base with Pins and Bush UNIBASE
Regular price
£23.50
Regular price
Sale price
£23.50
Unit price
£23.50 each
Shipping calculated at checkout.
In stock
Quantity
Couldn't load pickup availability
- Diameter: 170mm
- Thickness: 8mm
- Bore: 39mm
- Recess: 60mm
- Screw Thread: 2BA
- The Unibase enables routers with non-standard guide bush fittings to accept the range of Trend guide bushes

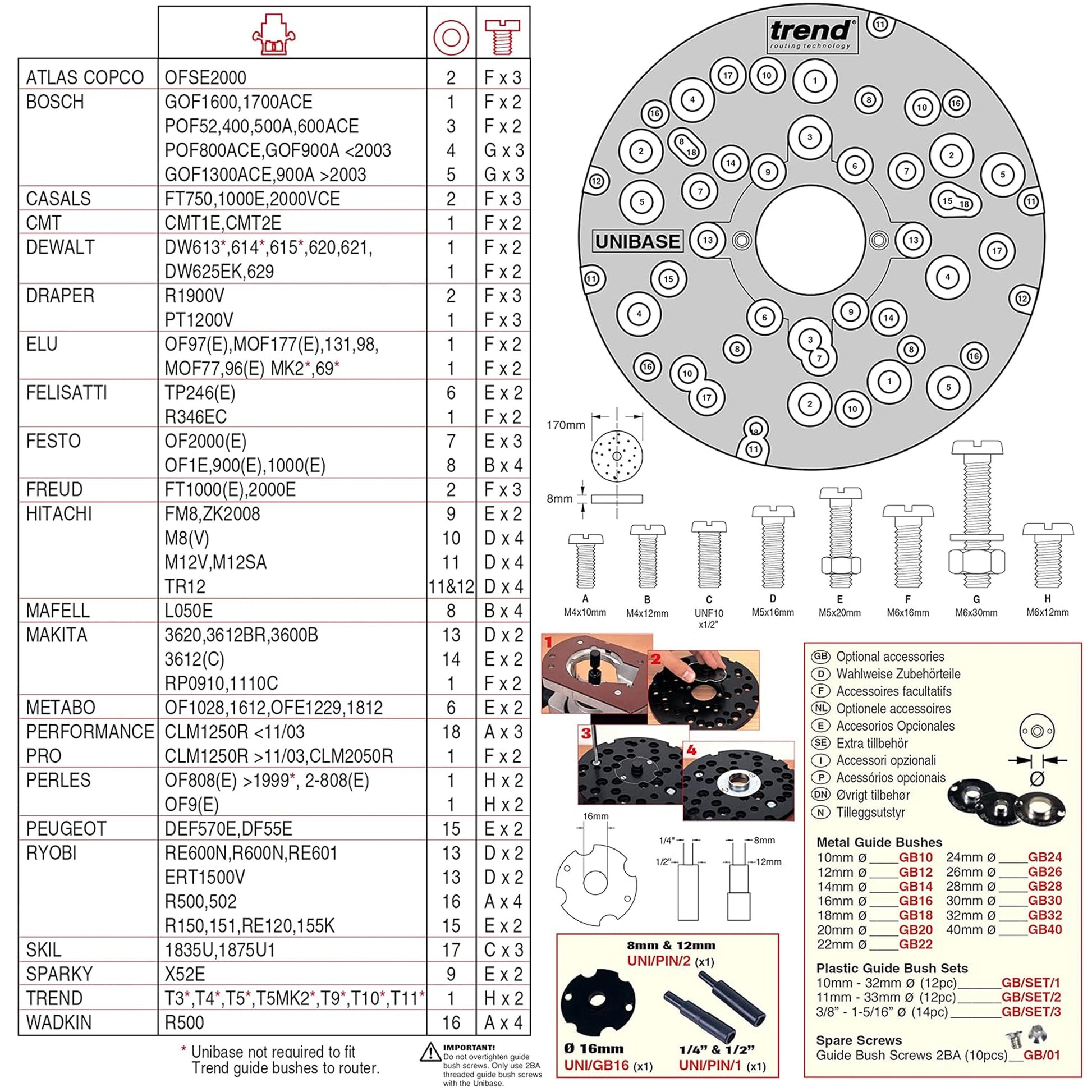

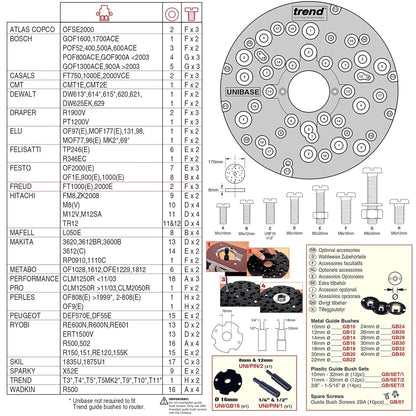

- It will fit directly to most routers
- Ideal for hinge jig and lock jig
- Line-up pin used with a 16mm plastic bush to ensure concentricity of the cutter to the guide bush when fitting the sub-base
- Suits collet sizes 1/4in, 8mm, 12mm and 1/2in

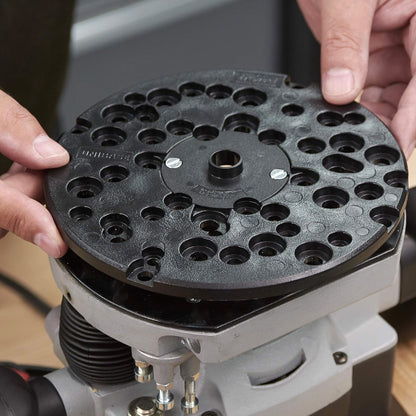

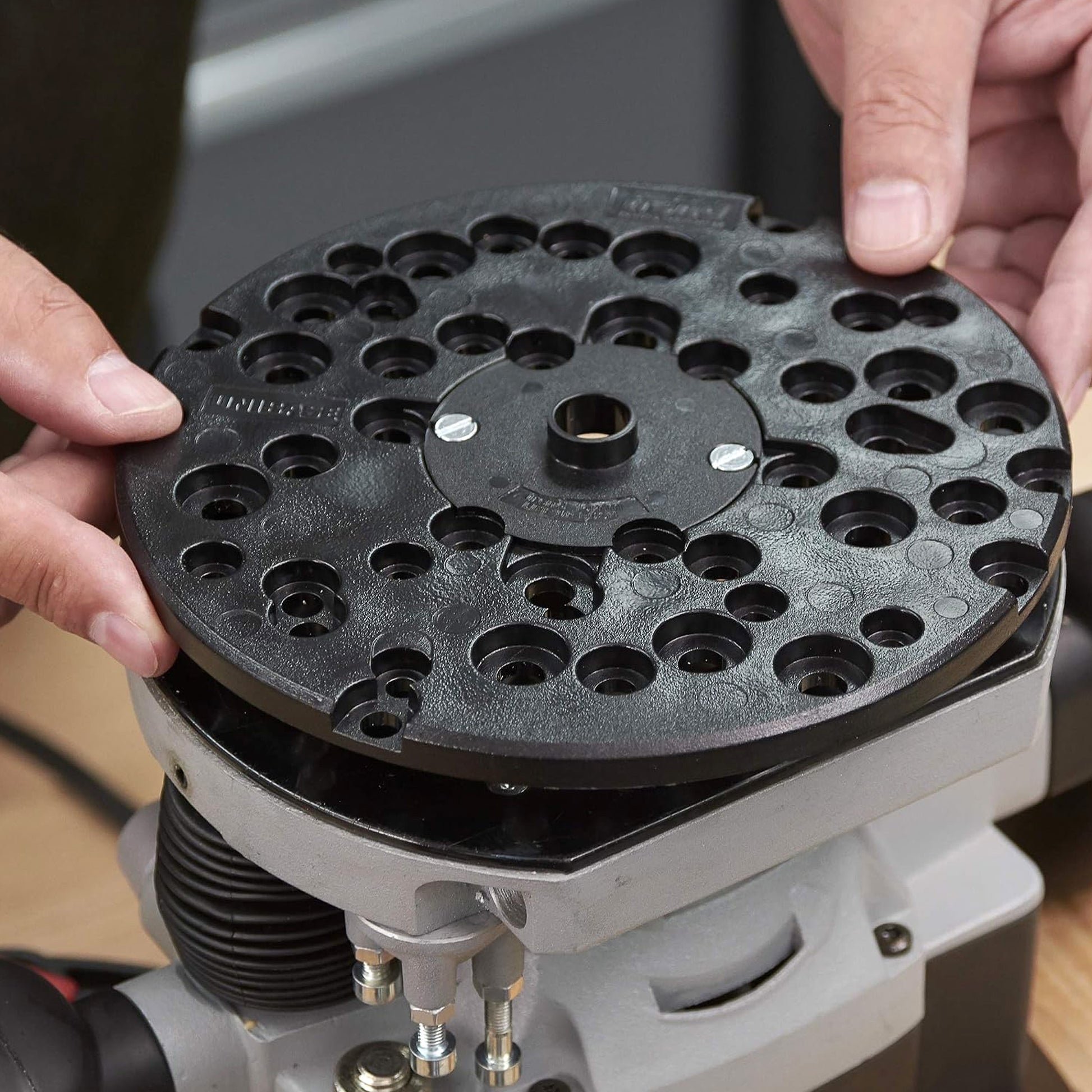

- Instructions for fitting
- The line-up pin fit into the collet and is plunged through the router base
- The line-up bush is fitted into the Unibase and secured
- This is then placed over the line-up pin and rotated in order to line up the fixing holes
- The Unibase screws are tightened and then the line-up bush can be replaced with any choice of Trend guide bushes
- These range from 10mm up to 30mm (GB10 - GB32). For larger diameter cutters a 40mm guide bush (GB40) is available
SKU:TREUNIBASE
