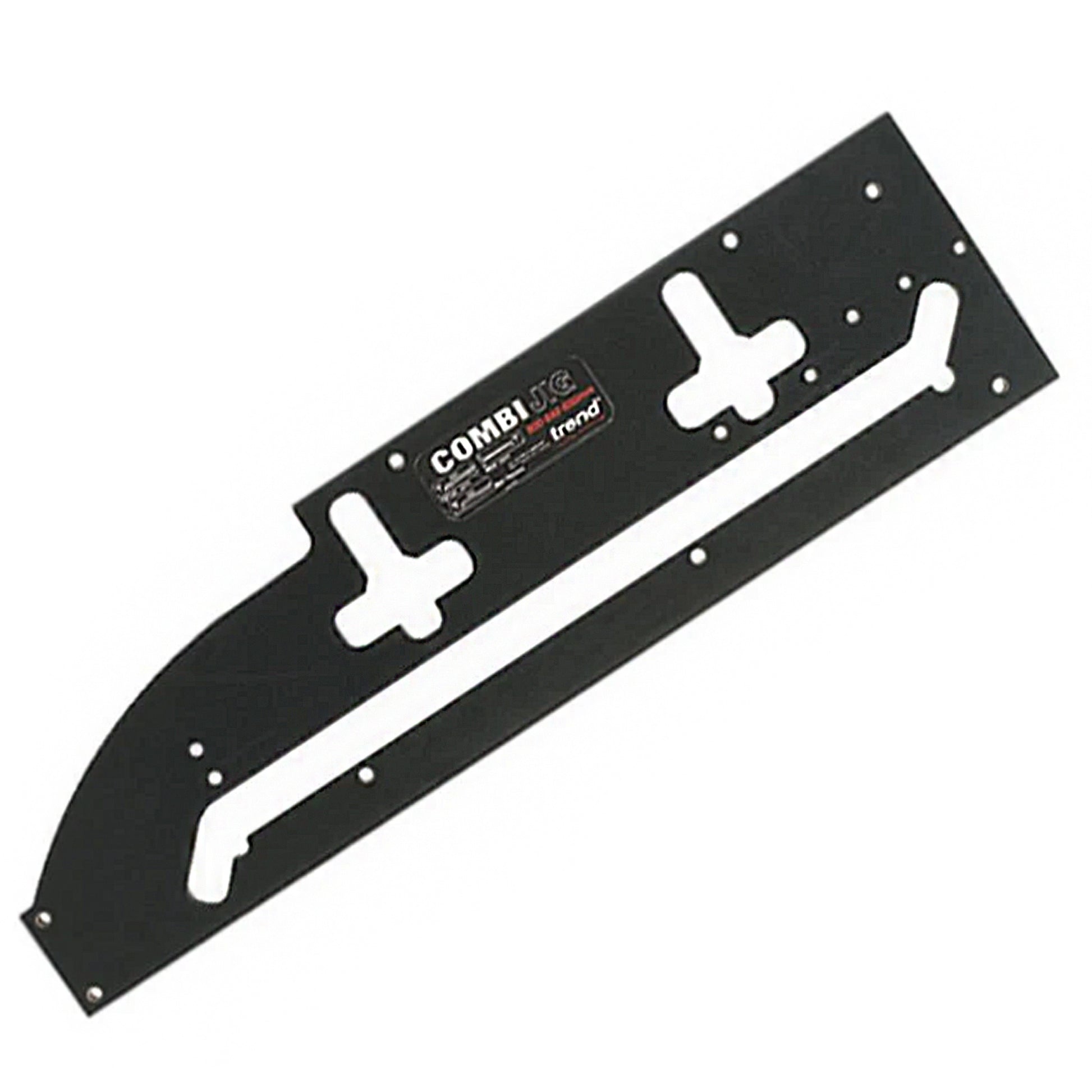

Trend Worktop Jig 500mm-650mm Penninsular COMBI66
Trend Worktop Jig 500mm-650mm Penninsular COMBI66
Regular price
£112.75
Regular price
Sale price
£112.75
Unit price
£112.75 each
Shipping calculated at checkout.
In stock
Quantity
Couldn't load pickup availability
- Length: 880mm
- Width: 233mm
- Thickness: 16mm
- Weight: 3.3kg
- Female Cut Material Width Loss: 23 mm
- A worktop jig, designed to enable all 1/2in shank plunge routers to cut precise butt and scribe joints in postform workstops
- Machined from hardwearing solid laminate
- Will produce a joint in 15 minutes including setting-up time
- Out-of-square joints can be accommodated
- Facilities to cut various widths of board and thicknesses up to 42mm
- Integral panel bolt connector recessing template with easy spanner access
- Width setting stop for accurate positioning
- Supplied with clear and comprehensive instructions for use
- A single male and female template in 16mm solid laminate
- Facility to join boards from 500mm to 650mm wide
- Two bolt recess slot for connecting bolts
- Three alloy location bushes and width setting stop
- Cuts out of square joints (max. 3 degree)
- Requires the following:
- Plunge router with 12.7mm (1/2in) shank capacity and minimum 1300 watts
- A template guide bush with 30mm outside diameter
- A TCT router cutter with 12.7mm (1/2in) diameter and 50mm (2in) cut length
- Two 100mm (4in) throat clamps
SKU:TRECOMBI66
